d 1~4mm

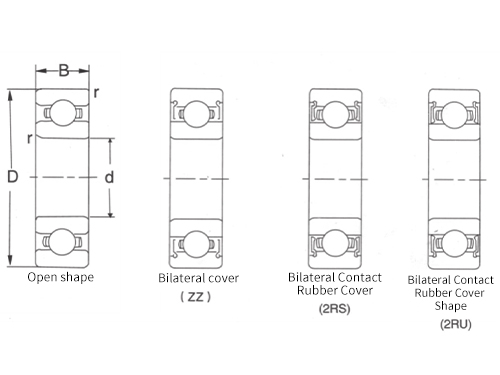

Dimensiuni principale (mm) | Capac de cauciuc | Capac de fier | Model | Capacitate de sarcină dinamică de bază | Capacitate de sarcină statică de bază | Greutate de referință (g) | |||||||
d | D | B | r | B1 | r1 | Deschide | Capac de fier | Capac de contact | Non-contact | Cr(N) | Porumb) | Deschide | Tip de acoperire din cauciuc Tip capac de fier |
1 | 3 | 1.0 | 0.05 | 1.5 | 0.05 | 681 | 681 ZZ | / | / | 80 | 23 | 0.08 | |
3 | 1.5 | 0.05 | / | / | MR31 | / | / | / | 80 | 23 | 0.07 | ||
4 | 1.6 | 0.10 | 2.3 | 0.10 | 691 | 691 ZZ | / | / | 140 | 36 | 0.10 | ||
1.2 | 4 | 1.8 | 2.50 | 0.1 | 0.10 | MR41 X | MR41 XZZ | / | / | 138 | 35 | 0.10 | 0.14 |
1.5 | 4 | 1.2 | 0.05 | 2.0 | 0.05 | 68/1.5 | 68/1,5 ZZ | / | / | 112 | 33 | 0.07 | 0.11 |
5 | 2.0 | 0.15 | 2.6 | 0.15 | 69/1.5 | 69/1,5 ZZ | / | / | 240 | 69 | 0.17 | 0.19 | |
6 | 2.5 | 0.15 | 3.0 | 0.15 | 60/1,5 | 60/1,5 ZZ | / | / | 330 | 99 | 0.31 | 0.36 | |
2 | 4 | 1.2 | 0.05 | 2.0 | 0.06 | 672 | 672 ZZ | / | / | 104 | 37 | 0.10 | 0.14 |
5 | 1.5 | 0.08 | 2.3 | 0.08 | 682 | 682 ZZ | / | / | 188 | 59 | 0.12 | 0.17 | |
5 | 2.0 | 0.10 | 2.5 | 0.10 | MR52 | MR52 ZZ | / | / | 188 | 59 | 0.16 | 0.22 | |
6 | 2.3 | 0.15 | 3.0 | 0.15 | 692 | 692 ZZ | / | / | 330 | 99 | 0.28 | 0.38 | |
6 | 2.5 | 0.15 | 2.5 | 0.15 | MR62 | MR62 ZZ | / | / | 330 | 99 | 0.28 | 0.33 | |
7 | 2.5 | 0.15 | 3.0 | 0.15 | MR72 | MR72 ZZ | / | / | 385 | 128 | 0.43 | 0.47 | |
7 | 2.8 | 0.15 | 3.5 | 0.15 | 602 | 602 ZZ | / | / | 385 | 128 | 0.51 | 0.58 | |
2.5 | 5 | 1.5 | 0.08 | / | / | 67/2.5 | 67/2,5 ZZ | / | / | 153 | 59 | 0.11 | 0.11 |
6 | 1.8 | 0.08 | 2.3 | 0.08 | 68/2.5 | 68/2,5 ZZ | / | / | 209 | 73 | 0.23 | 0.29 | |
7 | 2.5 | 0.15 | 2.6 | 0.08 | 69/2.5 | 69/2,5 ZZ | / | / | 385 | 128 | 0.40 | 0.55 | |
8 | 2.5 | 0.20 | 3.5 | 0.15 | MR82 X | MR82 XZZ | / | / | 560 | 179 | 0.52 | ||
8 | 2.8 | 0.15 | / | / | 60/2,5 | 60/2,5 ZZ | / | / | 550 | 175 | 0.63 | 0.83 | |
3 | 6 | 2.0 | 0.08 | 4.0 | 0.15 | 673 | 673 ZZ | / | / | 209 | 73 | 0.19 | 0.28 |
7 | 2.0 | 0.10 | 2.5 | 0.08 | 683 | 683 ZZ | / | / | 385 | 129 | 0.32 | 0.43 | |
8 | 2.5 | 0.15 | 3.0 | 0.10 | MR83 | / | / | / | 560 | 179 | 0.51 | ||
8 | 3.0 | 0.15 | 4.0 | 0.15 | 693 | 693 ZZ | / | / | 56 | 179 | 0.61 | 0.83 | |
9 | 2.5 | 0.20 | 4.0 | 0.15 | MR93 | MR93 ZZ | / | / | 640 | 226 | 0.68 | 1.18 | |
9 | 3.0 | 0.15 | 5.0 | 0.15 | 603 | 603 ZZ | / | 640 | 226 | 0.84 | 1.20 | ||
10 | 4.0 | 0.15 | 4.0 | 0.15 | 623 | 623 ZZ | / | / | 615 | 226 | 1.65 | 1.66 | |
13 | 5.0 | 0.20 | 5.0 | 0.20 | 633 | 633 ZZ | / | / | 1300 | 485 | 3.38 | 3.33 | |
4 | 7 | 2.0 | 0.08 | 2.5 | 0.08 | 674 | 674 ZZ | / | / | 315 | 115 | 0.21 | 0.29 |
8 | 2.0 | 0.15 | 3.0 | 0.10 | MR84 | MR84 ZZ | / | / | 395 | 140 | 0.33 | 0.56 | |
9 | 2.5 | 0.10 | 4.0 | 0.10 | 684 | 684 ZZ | / | / | 640 | 226 | 0.63 | 1.01 | |
10 | 3.0 | 0.20 | 4.0 | 0.15 | MR104 | MR104 ZZ | / | / | 650 | 236 | 0.95 | 1.33 | |
11 | 4.0 | 0.15 | 4.0 | 0.15 | 694 | 694 ZZ | 694-2RS | 694-2RU | 715 | 283 | 1.70 | 1.75 | |
12 | 4.0 | 0.20 | 4.0 | 0.20 | 604 | 604 ZZ | 604-2RS | 604-2RU | 970 | 360 | 2.25 | 2.29 | |
13 | 5.0 | 0.20 | 5.0 | 0.20 | 624 | 624 ZZ | 624-2RS | 624-2RU | 1300 | 485 | 2.97 | 3.04 | |
16 | 5.0 | 0.30 | 5.0 | 0.30 | 634 | 634 ZZ | 634-2RS | 634-2RU | 1740 | 670 | 5.00 | 5.21 |
d 5~15mm
Dimensiuni principale (mm) | Capac de cauciuc | Capac de fier | Model | Capacitate de sarcină dinamică de bază | Capacitate de sarcină statică de bază | Greutate de referință (g) | |||||||
d | D | B | r | B1 | r1 | Deschide | Capac de fier | Capac de contact | Non-contact | Cr(N) | Porumb) | Deschide | Tip de acoperire din cauciuc Tip capac de fier |
5 | 8 | 2.0 | 0.08 | 2.5 | 0.08 | 675 | 675 ZZ | / | / | 278 | 131 | 0.25 | 0.34 |
9 | 2.5 | 0.15 | 3.0 | 0.15 | MR95 | MR95 ZZ | / | / | 435 | 168 | 0.48 | 0.54 | |
10 | 3.0 | 0.15 | 4.0 | 0.15 | MR105 | MR105 ZZ | / | / | 435 | 168 | 0.90 | 1.29 | |
11 | 3.0 | 0.15 | 5.0 | 0.15 | 685 | 685 ZZ | 685-2RS | 685-2RU | 715 | 283 | 1.20 | 1.95 | |
13 | 4.0 | 0.20 | 4.0 | 0.20 | 695 | 695 22 | 695-2RS | 695-2RU | 1080 | 430 | 2.40 | 2.5 | |
14 | 5.0 | 0.20 | 5.0 | 0.20 | 605 | 605 ZZ | 605-2RS | 605-2RU | 1330 | 505 | 3.54 | 4 | |
16 | 5.0 | 0.30 | 5.0 | 0.30 | 625 | 625 ZZ | 625-2RS | 625-2RU | 1730 | 670 | 4.95 | 6 | |
19 | 6.0 | 0.30 | 6.0 | 0.30 | 635 | 635 22 | 635-2RS | 635-2RU | 2620 | 1060 | 8.53 | 9 | |
6 | 10 | 2.5 | 0.10 | 3.0 | 0.10 | 675 | 675 ZZ | / | / | 495 | 219 | 0.53 | 0.9 |
12 | 3.0 | 0.20 | 4.0 | 0.15 | MR126 | MR126 ZZ | / | / | 715 | 292 | 1.20 | 1.6 | |
13 | 3.5 | 0.15 | 5.0 | 0.15 | 686 | 686 ZZ | 686-2RS | 686-?RU | 1080 | 440 | 1.90 | 2.5 | |
15 | 5.0 | 0.20 | 5.0 | 0.20 | 696 | 696 ZZ | 696-2RS | 696-2RU | 1740 | 670 | 3.79 | 3.9 | |
17 | 6.0 | 0.30 | 6.0 | 0.30 | 606 | 606 ZZ | 606-2RS | 606-2HU | 2260 | 840 | 5.94 | 6 | |
19 | 6.0 | 0.30 | 6.0 | 0.30 | 626 | 626 22 | 626-2RS | 626-2RU | 2620 | 1060 | 7.97 | 8 | |
22 | 7.0 | 0.30 | 7.0 | 0.30 | 636 | 636 ZZ | 636 2RS | 636-2RU | 3300 | 1360 | 13.00 | 13 | |
7 | 11 | 2.5 | 0.10 | 3.0 | 0.10 | 677 | 677 22 | / | / | 455 | 201 | 0.59 | 0.71 |
13 | 3.0 | 0.20 | 4.0 | 0.15 | MR137 | MR137 ZZ | / | / | 830 | 375 | 1.50 | 1.98 | |
14 | 3.5 | 0.15 | 5.0 | 0.15 | 687 | 687 ZZ | 687-2RS | 687-2RU | 1170 | 510 | 2.00 | 2.97 | |
17 | 5.0 | 0.30 | 5.0 | 0.30 | 697 | 697 ZZ | 697-2RS | 697-2RU | 1610 | 715 | 4.80 | 5.01 | |
19 | 6.0 | 0.30 | 6.0 | 0.30 | 607 | 607 ZZ | 607-2RS | 607-2RU | 2620 | 1060 | 7.67 | 8 | |
22 | 7.0 | 0.30 | 7.0 | 0.30 | 627 | 627 ZZ | 627-2RS | 627-2RU | 3300 | 1360 | 12.00 | 12 | |
26 | 9.0 | 0.30 | 9.0 | 0.30 | 637 | 637 ZZ | 637-2RS | 637-2RU | 4000 | 1580 | 24.00 | 25 | |
8 | 12 | 2.5 | 0.10 | 3.5 | 0.10 | 678 | B78 22 | / | / | 535 | 271 | 0.70 | 0.95 |
14 | 3.5 | 0.20 | 4.0 | 0.15 | MR148 | MR148 ZZ | / | / | 820 | 385 | 1.90 | 2.12 | |
16 | 4.0 | 0.20 | 5.0 | 0.20 | 688 | BA8 22 | 688-2RS | 688-2RU | 1250 | 590 | 3.00 | 3.7 | |
19 | 6.0 | 0.30 | 6.0 | 0.30 | 698 | 698 ZZ | 698-2RS | 698-2RU | 2240 | 905 | 7.18 | 7.2 | |
22 | 7.0 | 0.30 | 7.0 | 0.30 | 608 | 608 ZZ | 608-2RS | 608-2RU | 3300 | 1360 | 12.00 | 12 | |
24 | 8.0 | 0.30 | 8.0 | 0.30 | 628 | 628 22 | 628-2RS | B28-2RU | 3350 | 1410 | 17.00 | 17.3 | |
28 | 9.0 | 0.30 | 9.0 | 0.30 | 638 | 638 ZZ | 638-2RS | 638-2RU | 4550 | 1970 | 27.00 | 28.6 | |
9 | 14 | 3.0 | 0.10 | 4.5 | 0.10 | 679 | 679 ZZ | / | / | 930 | 470 | 1.35 | 1.98 |
17 | 4.0 | 0.20 | 5.0 | 0.20 | 689 | 689 ZZ | 689-2RS | 689-2RU | 1730 | 810 | 3.53 | 4.43 | |
20 | 6.0 | 0.30 | 6.0 | 0.30 | 699 | 699 ZZ | 699-2RS | 699-2RU | 2120 | 985 | 8.33 | 8.45 | |
24 | 7.0 | 0.30 | 7.0 | 0.30 | 609 | 609 ZZ | 609-2RS | 609-2RU | 3350 | 1410 | 14.50 | 14.6 | |
26 | 8.0 | 0.30 | 8.0 | 0.30 | 629 | 629 22 | 629-2RS | 629-2RU | 4550 | 1970 | 19.50 | 20 | |
30 | 10 | 0.60 | 10 | 0.60 | 639 | 639 ZZ | 639-2RS | 639-2RU | 5100 | 2390 | 34.00 | 36 |
d 5~15mm
Dimensiuni principale (mm) | Model | Cr(N) | Porumb) | greutate (g) | ||||||
d | D | B | r | Deschide | Capac de fier | Capac de contact | Non-contact | |||
10 | 15 | 3 | 0.1 | 6700 | 6700 ZZ | 6700-2RS | 6700-2RU | 1010 | 555 | 0.0015 |
19 | 5 | 0.3 | 6800 | 6800 ZZ | 6800-2RS | 6800-2RU | 1840 | 925 | 0.005 | |
19 | 7 | 0.3 | 63800 | 63800 ZZ | 63800-2RS | 63800-2RU | 1840 | 925 | 0.0074 | |
22 | 6 | 0.3 | 6900 | 6900 ZZ | 6900-2RS | 6900-2RU | 2700 | 1270 | 0.009 | |
26 | 8 | 0.3 | 6000 | 6000 ZZ | 6000-2RS | 6000-2RU | 4550 | 1970 | 0.019 | |
26 | 12 | 0.5 | 63000 | / | 63000-2RS | / | 4620 | 1960 | 0.025 | |
28 | 8 | 0.3 | 16100 | / | / | / | 4620 | 1960 | 0.022 | |
30 | 9 | 0.6 | 6200 | 6200 ZZ | 6200-2RS | 6200-2RU | 5100 | 2390 | 0.032 | |
30 | 14 | 1 | 62200 | / | 62200-2RS | / | 5070 | 2360 | 0.04 | |
30 | 14.3 | 1 | 63200 | / | 63200-2RS | / | 5146 | 2350 | 0.046 | |
35 | 11 | 0.6 | 6300 | 6300 ZZ | 6300-2RS | 6300-2RU | 8100 | 3450 | 0.053 | |
35 | 17 | 1 | 62300 | / | 62300-2RS | / | 8060 | 3400 | 0.06 | |
35 | 19.05 | 0.6 | 63300 | / | 63300-2RS | / | 8095 | 3565 | 0.105 | |
37 | 12 | 0.6 | 6400 | / | / | / | 9000 | 4650 | / | |
12 | 18 | 4 | 0.2 | 6701 | 6701 ZZ | 6701-2RS | 6701-2RU | 1070 | 6555 | 0.003 |
21 | 5 | 0.3 | 6801 | 6801 ZZ | 6801-2RS | 6801-2RU | 1900 | 1040 | 0.006 | |
21 | 7 | 0.3 | 63801 | 63801 ZZ | 63801-2RS | 63801-2RU | 1900 | 1040 | 0.0085 | |
24 | 6 | 0.3 | 6901 | 6901 ZZ | 6901-2RS | 6901-2RU | 2900 | 1460 | 0.011 | |
28 | 7 | 0.3 | 16001 | / | / | / | 5100 | 2400 | 0.024 | |
28 | 8 | 0.3 | 6001 | 6001 ZZ | 6001-2RS | 6001-2RU | 5100 | 2390 | 0.023 | |
28 | 12 | 0.5 | 63001 | / | 63001-2RS | / | 5070 | 2360 | 0.029 | |
30 | 8 | 0.3 | 16101 | / | / | / | 5070 | 2360 | 0.023 | |
32 | 10 | 0.6 | 6201 | 6201 ZZ | 6201-2RS | 6201-2RU | 6800 | 3050 | 0.037 | |
32 | 14 | 1 | 62201 | / | 62201-2RS | / | 6890 | 3100 | 0.046 | |
32 | 15.9 | 1 | 63201 | / | 63201-2RS | / | 7000 | 3050 | 0.055 | |
37 | 12 | 1 | 6301 | 6301 ZZ | 6301-2RS | 6301-2RU | 9800 | 4250 | 0.06 | |
37 | 1700 | 1.5 | 62301 | / | 62301-2RS | / | 9750 | 4150 | 0.074 | |
37 | 1905 | 1 | 63301 | / | 63301-2RS | / | 9705 | 4360 | 0.114 | |
42 | 13 | 1 | 6401 | / | / | / | 11600 | 5150 | 0.048 | |
15 | 21 | 4 | 0.2 | 6702 | 6702 ZZ | 6702-2RS | 6702-2RU | 1150 | 790 | 0.0035 |
24 | 5 | 0.3 | 6802 | 6802 ZZ | 6802-2RS | 6802-2RU | 2080 | 1260 | 0.007 | |
24 | 7 | 0.3 | 63802 | 63802 ZZ | 63802-2RS 63802-2RU | 2080 | 1260 | 0.01 | ||
28 | 7 | 0.3 | 6902 | 6902 ZZ | 6902-2RS | 6902-2RU | 4300 | 2250 | 0.016 | |
32 | 8 | 0.3 | 16002 | / | / | / | 5600 | 2840 | 0.025 | |
32 | 9 | 0.3 | 6002 | 6002 ZZ | 6002-2RS | 6002-2RU | 5600 | 2840 | 0.032 | |
32 | 13 | 0.5 | 63002 | / | 63002-2RS | / | 5590 | 2850 | 0.042 | |
35 | 11 | 0.6 | 6202 | 6202 ZZ | 6202-2RS | 6202-2RU | 7650 | 3700 | 0.045 | |
35 | 14 | 1 | 62202 | / | 62202-2RS | / | 7800 | 3750 | 0.056 | |
35 | 15.9 | 1 | 63202 | / | 63202-2RS | / | 8000 | 3600 | 0.068 | |
42 | 13 | 1 | 6302 | 6302 ZZ | 6302-2RS | 6302-2RU | 11400 | 5400 | 0.082 | |
42 | 17 | 1.5 | 62302 | / | 62302-2RS | / | 11400 | 5400 | 0.11 | |
42 | 19 | 1.5 | 63302 | / | 63302-2RS | / | 8232 | 4900 | 0.152 | |
52 | 15 | 1.1 | 6402 | / | / | / | 15900 | 7300 | 0.137 |
d 17~35mm
Dimensiuni principale (mm) | Model | Cr(N) | Porumb) | greutate (g) | ||||||
d | D | B | r | Deschide | Capac de fier | Capac de contact | Non-contact | |||
17 | 23 | 4 | 0.2 | 6703 | 6703 ZZ | 6703-2RS | 6703-2RU | 1200 | 865 | 0.004 |
26 | 5 | 0.3 | 6803 | 6803 ZZ | 6803-2RS | 6803-2RU | 2630 | 1570 | 0.008 | |
26 | 7 | 0.3 | 63803 | 63803 ZZ | 63803-2RS | 63803-2RU | 2630 | 1570 | 0.011 | |
30 | 7 | 0.3 | 6903 | 6903 ZZ | 6903-2RS | 6903-2RU | 4600 | 2550 | 0.018 | |
35 | 8 | 0.3 | 16003 | / | / | / | 6000 | 3250 | 0.032 | |
35 | 10 | 0.3 | 6003 | 6003 ZZ | 6003-2RS | 6003-2RU | 6000 | 3250 | 0.039 | |
35 | 14 | 0.5 | 63003 | / | 63003-2RS | / | 6050 | 3250 | 0.051 | |
40 | 12 | 0.6 | 6203 | 6203 ZZ | 6203-2RS | 6203-2RU | 9550 | 4800 | 0.065 | |
40 | 16 | 1 | 62203 | / | 62203-2RS | / | 9560 | 4750 | 0.085 | |
40 | 17.5 | 1 | 63203 | / | 63203-2RS | / | 9200 | 4500 | 0.09 | |
47 | 14 | 1 | 6303 | 6303 ZZ | 6303-2RS | 6303-2RU | 13600 | 6550 | 0.115 | |
47 | 19 | 1.5 | 62303 | / | 62303-2RS | / | 13500 | 6550 | 0.149 | |
47 | 22.2 | 1.5 | 63303 | / | 63303-2RS | / | 9800 | 5684 | 0.176 | |
62 | 17 | 1.1 | 6403 | / | / | / | 22700 | 10800 | 0.271 | |
20 | 27 | 4 | 0.2 | 6704 | 6704 ZZ | 6704-2RS | 6704-2RU | 1790 | 1320 | 0.005 |
32 | 7 | 0.3 | 6804 | 6804 ZZ | 6804-2RS | 6804-2RU | 4000 | 2470 | 0.019 | |
32 | 10 | 0.3 | 63804 | 63804 ZZ | 63804-2RS | 63804-2RU | 4000 | 2470 | 0.024 | |
37 | 9 | 0.3 | 6904 | 6904 ZZ | 6904-2RS | 6904-2RU | 6350 | 3700 | 0.036 | |
42 | 8 | 0.3 | 16004 | / | / | / | 7900 | 4500 | 0.05 | |
42 | 12 | 0.6 | 6004 | 6004 ZZ | 6004-2RS | 6004-2RU | 9400 | 5000 | 0.07 | |
42 | 16 | 1 | 63004 | / | 63004-2RS | / | 9360 | 5000 | 0.088 | |
47 | 14 | 1 | 6204 | / | 6204-2RS | / | 12800 | 6600 | 0.106 | |
47 | 18 | 1.5 | 62204 | 6204 ZZ | 62204-2RS | 62204-2RU | 12700 | 6550 | 0.128 | |
47 | 20.6 | 1.5 | 63204 | / | 63204-2RS | / | 9800 | 6174 | 0.15 | |
52 | 15 | 1.1 | 6304 | / | 6304-2RS | / | 15900 | 7900 | 0.144 | |
52 | 21 | 2 | 62304 | 6304 ZZ | 62304-2RS | 62304-2RU | 15900 | 7800 | 0.197 | |
52 | 22.2 | 2 | 63304 | / | 63304-2RS | / | 11466 | 7056 | 0.21 | |
72 | 19 | 1.1 | 6404 | / | 6404-2RS | / | 31000 | 15200 | 0.408 | |
22 | 44 | 12 | 0.6 | 60/22 | 60/22 ZZ | 60/22-2RS | 60/22-2RU | 9400 | 5050 | 0.074 |
50 | 14 | 1 | 62/22 | 62/22 ZZ | 62/22-2RS | 62/22-2RU | 13900 | 6950 | 0.12 | |
56 | 16 | 1.1 | 63/22 | 63/22 ZZ | 63/22-2RS | 63/22-2RU | 18400 | 9250 | 0.176 | |
25 | 32 | 4 | 0.2 | 6705 | 6705 ZZ | 6705-2RS | 6705-2RU | 1930 | 1550 | 0.006 |
37 | 7 | 0.3 | 6805 | 6805 ZZ | 6805-2RS | 6805-2RU | 4300 | 2950 | 0.022 | |
37 | 10 | 0.3 | 63805 | 63805 ZZ | 63805-2RS | 63805-2RU | 4300 | 2950 | 0.032 | |
42 | 9 | 0.3 | 6905 | 6905 ZZ | 6905-2RS | 6905-2RU | 7000 | 4500 | 0.041 | |
47 | 8 | 0.3 | 16005 | / | / | / | 6950 | 5650 | 0.06 | |
47 | 12 | 0.6 | 6005 | 6005 ZZ | 6005-2RS | 6005-2RU | 10100 | 5850 | 0.079 | |
47 | 16 | 1 | 63005 | / | 63005-2RS | / | 11200 | 6550 | 0.1 | |
52 | 15 | 1 | 6205 | 6205 ZZ | 6205-2RS | 6205-2RU | 14000 | 7900 | 0.128 | |
52 | 18 | 1.5 | 62205 | / | 62205-2RS | / | 14000 | 7800 | 0.146 | |
52 | 20.6 | 1.5 | 63205 | / | 63205-2RS | / | 10584 | 6860 | 0.175 | |
62 | 17 | 1.1 | 6305 | 6305 ZZ | 6305-2RS | 6305-2RU | 23600 | 12100 | 0.232 | |
62 | 24 | 2 | 62305 | / | 62305-2RS | / | 22500 | 11600 | 0.32 | |
62 | 25.4 | 2 | 63305 | / | 63305-2RS | / | 14700 | 9800 | 0.315 | |
80 | 21 | 1.5 | 6405 | / | / | / | 40000 | 20100 | 0.528 |
d 17~35mm
Dimensiuni principale (mm) | Model | Cr(N) | Porumb) | greutate (g) | ||||||
d | D | B | r | Deschide | Capac de fier | Capac de contact | Non-contact | |||
28 | 52 | 12 | 0.6 | 60/28 | 60/28 ZZ | 60/28-2RS | 6028-2RU | 12500 | 7400 | 0.098 |
58 | 16 | 1 | 62/28 | 62/28 ZZ | 62/28-2RS | 62/28-2RU | 17900 | 9750 | 0.175 | |
68 | 16 | 1.1 | 63/28 | 63/28 ZZ | 63/28-2RS | 63/28-2RU | 26800 | 14000 | 0.287 | |
30 | 37 | 4 | 0.2 | 6706 | 6706 ZZ | 6706-2HS | 6706-2RU | 2050 | 1780 | 0.008 |
42 | 7 | 0.3 | 6806 | 6805 ZZ | 6806-2RS | 6806-2RU | 4500 | 3400 | 0.0026 | |
42 | 10 | 0.3 | 63806 | 63806 ZZ | 63806-2HS | 63806-2RU | 4500 | 3400 | 0.026 | |
47 | 9 | 0.3 | 6906 | 6906 ZZ | 6906-2HS | 6906-2RU | 7250 | 5000 | 0.045 | |
55 | 9 | 0.3 | 16006 | / | / | / | 9950 | 6550 | 0.085 | |
55 | 13 | 1 | 6006 | 6006 ZZ | 6006-2RS | 6006-2RU | 13200 | 8300 | 0.117 | |
55 | 19 | 1.5 | 63006 | / | 63006-2RS | / | 13300 | 8300 | 0.159 | |
62 | 16 | 1 | 6006 | 6706 ZZ | 6206-2RS | 6206-2RU | 19500 | 11300 | 0.199 | |
62 | 20 | 1.5 | 62206 | / | 62206-2RS | / | 19500 | 11200 | 0.242 | |
62 | 23.8 | 1.5 | 63206 | / | 63206-2RS | / | 14700 | 9800 | 0.28 | |
72 | 19 | 1.1 | 6306 | 6306 ZZ | 6306-2RS | 6306-2RU | 26700 | 15000 | 0.346 | |
72 | 27 | 2 | 62306 | / | 62306-2RS | / | 28100 | 16000 | 0.485 | |
72 | 30.2 | 2 | 63306 | / | 63306-2RS | / | 19600 | 13426 | 0.53 | |
90 | 23 | 1.5 | 6460 | / | / | / | 43500 | 23800 | 0.72 | |
32 | 58 | 13 | 1 | 60/32 | 60/32 ZZ | 60/32-2RS | 60/32-2RU | 15100 | 9150 | 0.129 |
65 | 17 | 1 | 62/32 | 62/32 ZZ | 62/32-2RS | 62/32-2RU | 22400 | 13100 | 0.23 | |
75 | 20 | 1.1 | 63/32 | 63/32 ZZ | 63/32-2RS | 63/32-2RU | 30000 | 16200 | 0.382 | |
35 | 44 | 5 | 0.3 | 6707 | 6707 ZZ | 6707-2RS | 6707-2RU | 1862 | 1637 | 0.15 |
47 | 7 | 0.3 | 6807 | 6807 ZZ | 6807-2RS | 6807-2RU | 4900 | 4000 | 0.029 | |
55 | 10 | 0.6 | 6907 | 6907 ZZ | 6907-2RS | 69C7-2RU | 10400 | 7150 | 0.073 | |
62 | 9 | 0.3 | 16007 | / | / | / | 11700 | 8150 | 0.11 | |
62 | 14 | 1 | 6007 | 6007 ZZ | 6007-2RS | 6007-2RU | 16000 | 10300 | 0.156 | |
62 | 20 | 1.5 | 63007 | 63007-2RS | / | 15900 | 10200 | 0.21 | ||
72 | 17 | 1.1 | 6207 | 6207 ZZ | 6207-2RS | 6207-2RU | 25700 | 15300 | 0.28 | |
72 | 23 | 2 | 62207 | / | 62207-2RS | / | 25500 | 15300 | 0.435 | |
72 | 27 | 2 | 63207 | / | 63207-2RS | / | 19404 | 12740 | 0.435 | |
80 | 21 | 1.5 | 6307 | 6307 ZZ | 6307-2RS | 6307-2RU | 33500 | 19100 | 0.457 | |
80 | 31 | 2.5 | 62307 | / | 62307-2RS | / | 33200 | 19000 | 0.67 | |
80 | 34.9 | 2.5 | 63307 | / | 63307-2RS | / | 23520 | 16170 | 0.71 | |
100 | 25 | 1.5 | 6407 | / | / | / | 55000 | 31000 | 0.936 |
d 40~70mm
Dimensiuni principale (mm) | Model | Cr(N) | Porumb) | greutate (g) | ||||||
d | D | B | r | Deschide | Capac de fier | Capac de contact | Non-contact | |||
40 | 50 | 6 | 0.3 | 6708 | 6708 ZZ | 6708-2RS | 6708-2RU | 2519 | 2234 | 0.023 |
52 | 7 | 0.3 | 6808 | 6808 ZZ | 6808-2RS | 6808-2RU | 5050 | 4350 | 0.033 | |
62 | 12 | 0.6 | 6908 | 6908 ZZ | 6908-2RS | 6908-2RU | 13700 | 9900 | 0.109 | |
68 | 9 | 0.3 | 16008 | / | / | 11100 | 8550 | 0.125 | ||
68 | 15 | 1 | 6008 | 6008 ZZ | 6008-2RS | 6008-2RU | 16800 | 11500 | 0.194 | |
68 | 21 | 1.5 | 63008 | / | 63008-2RS | / | 16800 | 11600 | 0.259 | |
80 | 18 | 1.1 | 6208 | 6208 ZZ | 6208-2RS | 6208-2RU | 29100 | 17900 | 0.366 | |
80 | 23 | 2 | 62208 | / | 62208-2RS | / | 30700 | 19000 | 0.45 | |
80 | 30.2 | 2 | 63208 | / | 63208-2RS | / | 20580 | 14210 | 0.435 | |
90 | 23 | 1.5 | 6308 | 6308 ZZ | 6308-2RS | 6308-2RU | 40500 | 24100 | 0.633 | |
90 | 33 | 2.5 | 62308 | / | 62308-2RS | / | 41000 | 24000 | 0.91 | |
90 | 36.5 | 2.5 | 63308 | / | 63308-2RS | / | 29400 | 20482 | 1.02 | |
110 | 27 | 2 | 6408 | / | / | 63500 | 36500 | 1.2 | ||
45 | 55 | 6 | 0.3 | 6709 | 6709 ZZ | 6709-2RS | 6709-2RU | 2577 | 2401 | 0.025 |
58 | 7 | 0.3 | 6809 | 6809 ZZ | 6809-2RS | 6809-2RU | 6400 | 5500 | 0.04 | |
68 | 12 | 0.6 | 6909 | 6909 ZZ | 6909-2RS | 6909-2RU | 14100 | 10900 | 0.122 | |
75 | 10 | 0.6 | 16009 | / | / | / | 12900 | 10500 | 0.17 | |
75 | 16 | 1 | 6009 | 6009 ZZ | 6009-2RS | 6009-2RU | 21000 | 15200 | 0.246 | |
75 | 23 | 1.5 | 63009 | / | 63009-2RS | / | 20800 | 14600 | 0.345 | |
85.0 | 19 | 1.1 | 6209 | 6209 ZZ | 6209-2RS | 6209-2RU | 32500 | 20500 | 0.407 | |
85.0 | 23 | 2 | 62209 | / | 62209-2RS | / | 33200 | 21600 | 0.485 | |
85.0 | 30.2 | 2 | 63209 | / | 63209-2RS | / | 22540 | 15680 | 0.64 | |
100.0 | 25 | 1.5 | 6309 | 6309 ZZ | 6309-2RS | 6309-2RU | 53000 | 32000 | 0.833 | |
100.0 | 36 | 2.5 | 62309 | / | 62309-2RS | / | 52700 | 31500 | 1.19 | |
100.0 | 39.7 | 2.5 | 63309 | / | 63309-2RS | / | 37240 | 27440 | 1.3 | |
120.0 | 29 | 2 | 6409 | / | / | 77500 | 45000 | 1.55 | ||
50 | 62.0 | 6 | 0.3 | 6710 | 6710 ZZ | 6710-2RS | 6710-2RU | 2666 | 2636 | 0.064 |
65.0 | 7 | 0.3 | 6810 | 6810 ZZ | 6810-2RS | 6810-2RU | 6600 | 6050 | 0.052 | |
72.0 | 12 | 0.6 | 6910 | 6910 ZZ | 6910-2RS | 6910-2RU | 14500 | 11700 | 0.127 | |
80.0 | 10 | 0.6 | 16010 | / | / | / | 16100 | 13100 | 0.18 | |
80.0 | 16 | 1 | 6010 | 6010ZZ | 6010-2RS | 6010-2RU | 21800 | 16600 | 0.264 | |
80.0 | 23 | 1.5 | 63010 | / | 63010-2RS | / | 21600 | 16000 | 0.37 | |
90.0 | 20 | 1.1 | 6210 | 6210 ZZ | 6210-2RS | 6210-2RU | 35000 | 23200 | 0.463 | |
90.0 | 23 | 2 | 62210 | / | 62210-2RS | / | 35100 | 23200 | 0.535 | |
90.0 | 30.2 | 2 | 63210 | / | 63210-2RS | / | 24500 | 18130 | 0.675 | |
110.0 | 27 | 2 | 6310 | 6310 ZZ | 6310-2RS | 6310-2RU | 62000 | 38100 | 1.07 | |
110.0 | 40 | 2 | 62310 | / | 62310-2RS | / | 61800 | 38000 | 1.55 | |
130.0 | 31 | 2.1 | 6410 | / | / | / | 87500 | 52000 | 1.91 |
d 40~70mm
Dimensiuni principale (mm) | Model | Cr(N) | Porumb) | greutate (g) | ||||||
d | D | B | r | Deschide | Capac de fier | Capac de contact | Non-contact | |||
55 | 68 | 7 | 0.3 | 6711 | / | / | / | 4850 | 5060 | 0.055 |
72 | 9 | 0.3 | 6811 | 6811 ZZ | 6811-2RS | 6811-2RU | 9100 | 8450 | 0.083 | |
80 | 13 | 1 | 6911 | 6911 ZZ | 6911-2RS | 6911-2RU | 16000 | 13200 | 0.177 | |
90 | 11 | 0.6 | 16011 | / | / | / | 15000 | 13500 | 0.26 | |
90 | 18 | 1.1 | 6011 | 6011 ZZ | 6011-2RS | 6011-2RU | 28300 | 21300 | 0.384 | |
100.0 | 21 | 1.5 | 6211 | 6211 ZZ | 6211-2RS | 6211-2RU | 43500 | 29300 | 0.607 | |
100.0 | 25 | 1.5 | 62211 | / | 62211-2BS | / | 43600 | 29000 | 0.7 | |
120.0 | 29 | 2 | 6311 | 6311 ZZ | 6311-2RS | 6311-2RU | 71500 | 44500 | 1.37 | |
120.0 | 43 | 2 | 62311 | / | 62311-2RS | / | 71500 | 45000 | 1.95 | |
140.0 | 33 | 2.1 | 6411 | / | / | / | 101000 | 62000 | 2.32 | |
60 | 75 | 7 | 0.3 | 6712 | / | / | / | 5900 | 6325 | 0.07 |
78 | 10 | 0.3 | 6812 | 6812 ZZ | 6812-2RS | 6812-2RU | 11500 | 10600 | 0.106 | |
85 | 13 | 1 | 6912 | 6912 ZZ | 6912-2RS | 6912-2RU | 19400 | 16200 | 0.191 | |
95 | 11 | 0.6 | 16012 | / | / | / | 16200 | 14300 | 0.28 | |
95 | 18 | 1.1 | 6012 | 6012 ZZ | 6012-2RS | 6012-2RU | 29500 | 23200 | 0.418 | |
110.0 | 22 | 1.5 | 6212 | 6212 ZZ | 6212-2RS | 6212-2RU | 52500 | 36000 | 0.783 | |
110.0 | 28 | 1.5 | 62212 | / | 62212-2BS | / | 47500 | 32500 | 0.97 | |
130.0 | 31 | 2 | 6312 | 6312 ZZ | 6312-2RS | 6312-2RU | 82000 | 52000 | 1.7 | |
130.0 | 46 | 2 | 62312 | / | 62312-2RS | / | 81900 | 52000 | 2.5 | |
130.0 | 35 | 2.1 | 6412 | / | / | / | 109000 | 70000 | 2.79 | |
65 | 85 | 10 | 0.6 | 6813 | 6813 ZZ | 6813-2RS | 6813-2RU | 12000 | 11500 | 0.125 |
90 | 13 | 1 | 6913 | 6913 ZZ | 6913-2RS | 6913-2RU | 17400 | 16000 | 0.2 | |
100.0 | 11 | 0.6 | 16013 | / | / | / | 20500 | 18600 | 0.3 | |
100.0 | 18 | 1.1 | 6013 | 6013 ZZ | 6013-2RS | 6013-2RU | 30500 | 25200 | 0.438 | |
120.0 | 23 | 1.5 | 6213 | 6213 ZZ | 6213-2BS | 6213-2RU | 57000 | 40000 | 0.99 | |
120.0 | 31 | 1.5 | 62213 | / | 62213-2RS | / | 55900 | 40500 | 1.25 | |
140.0 | 33 | 2.1 | 6313 | 6313 ZZ | 6313-2RS | 6313-2RU | 92500 | 59500 | 2.08 | |
140.0 | 48 | 2 | 62313 | / | 62313-2RS | / | 92300 | 60000 | 3 | |
160.0 | 37 | 2.1 | 6413 | / | / | / | 118000 | 78500 | 3.36 | |
70 | 85 | 7 | 0.3 | 6714 | / | / | / | 6100 | 7015 | 0.08 |
90 | 10 | 0.6 | 6814 | 6814 ZZ | 6814-2RS | 6814-2RU | 12100 | 11900 | 0.135 | |
100.0 | 16 | 1 | 6914 | 6914 ZZ | 6914-2RS | 6914-2RU | 23500 | 21100 | 0.327 | |
110.0 | 13 | 0.6 | 16014 | / | / | / | 26800 | 23600 | 0.433 | |
110.0 | 20 | 1.1 | 6014 | 6014 ZZ | 6014-2RS | 6014-2RU | 38000 | 31000 | 0.607 | |
125.0 | 24 | 1.5 | 6214 | 6214 ZZ | 6214-2RS | 6214-2RU | 62000 | 44000 | 1.07 | |
125.0 | 31 | 1.5 | 62214 | / | 62214-2RS | / | 60500 | 45000 | 1.3 | |
150.0 | 35 | 2.1 | 6314 | 6314 ZZ | 6314-2RS | 6314-2RU | 104000 | 68000 | 2.52 | |
150.0 | 51 | 2 | 62314 | / | 62314-2RS | / | 104000 | 68000 | 3.55 | |
180.0 | 42:00 | 3 | 6414 | / | / | / | 145000 | 105000 | 5 |
În mașinile de precizie, rulmenții cu bilă cu două rânduri, cu designul lor structural unic și performanțele stabile, au devenit componente de transmisie de bază în numeroase dispozitive. În compar...
CITEŞTE MAI MULTCe este un inel exterior încoronat de tip LR? Tip LR inel exterior încoronat este o componentă găsită în anumite rulmenți, adesea utilizată în aplicațiile în care reducerea frecării...
CITEŞTE MAI MULTCând vine vorba de utilaje de mare viteză-fie în motoarele auto, turbinele industriale sau robotica de precizie-performanța unui rulment cu bilă adâncă poate face sau rupe eficiența operațio...
CITEŞTE MAI MULTRulmenții cu bilă de pistă sunt componente critice în mașinile grele, asigurând mișcarea lină și distribuția sarcinii în echipamente precum excavatoare, buldozere și sisteme transportoare. Cu...
CITEŞTE MAI MULTFiind componente de bază ale echipamentelor mecanice, performanța și calitatea rulmenților sunt direct legate de eficiența de funcționare și stabilitatea întregului sistem. Ningbo Wanshun Bearing Co., Ltd., ca lider în industria rulmenților din China, a câștigat o recunoaștere largă și încredere pe piețele interne și externe prin tehnologia sa excelentă de producție, managementul strict al calității și liniile bogate de produse, în special în domeniul canelurii adânci. rulmenti cu bile.
Rulmenți adânci cu bile , cu structura lor simplă, capacitate mare de încărcare și frecare scăzută, sunt utilizate pe scară largă în diferite tipuri de echipamente mecanice și au devenit o parte indispensabilă a sistemului de transmisie. Ningbo Wanshun Bearing Co., Ltd. este bine conștientă de importanța rulmenților cu bile, așa că se angajează să producă rulmenți cu bile de înaltă calitate și de înaltă precizie pentru a îndeplini cerințele stricte ale diferitelor industrii pentru sistemele de transmisie.
În matricea de produse Ningbo Wanshun, rulmenții cu bile adânci din seriile 42 și 43 au devenit prima alegere a multor clienți datorită performanței lor excelente și calității fiabile. Aceste două serii de produse nu numai că îndeplinesc standardele internaționale generale, ci și controlează strict selecția materialelor, controlul procesului, inspecția calității și alte aspecte pentru a se asigura că fiecare set de rulmenți poate funcționa stabil în condiții de lucru complexe și în schimbare. În același timp, pentru a satisface nevoile personalizate ale diferiților clienți, Ningbo Wanshun oferă, de asemenea, rulmenți cu bile adânci din seria 42 și 43 cu diverse specificații și configurații pentru a se asigura că produsele pot fi utilizate pe scară largă în automobile, motoare, mașini agricole, mașini-unelte și alte domenii.
Fiind o companie care se concentrează pe producția de rulmenți de înaltă calitate, Ningbo Wanshun a considerat întotdeauna inovația tehnologică ca forță motrice de bază pentru dezvoltarea companiei. În procesul de producție al rulmenților adânci cu bile, compania introduce în mod continuu echipamente și tehnologie avansată de producție, optimizează procesul de producție și îmbunătățește eficiența producției și calitatea produsului. În același timp, compania a stabilit, de asemenea, un sistem complet de cercetare și dezvoltare, cooperează activ cu universități și instituții de cercetare științifică bine-cunoscute din țară și străinătate pentru a depăși împreună dificultățile tehnice și a promova progresul tehnologic în industria rulmenților cu bile adânci.
Calitatea este linia de salvare a lui Ningbo Wanshun. Compania ia întotdeauna „satisfacția clientului ca centru” drept concept de bază al managementului calității, implementează cu strictețe standardele sistemului de management al calității ISO9001 și controlează strict toate legăturile, cum ar fi achiziția de materii prime, producția și procesarea și inspecția produsului finit. Compania este, de asemenea, echipată cu echipamente de testare avansate și o echipă de testare profesionistă pentru a efectua teste cuprinzătoare ale diferiților indicatori de performanță ai produsului pentru a se asigura că fiecare set de rulmenți cu bile adânci poate îndeplini sau chiar depăși standardele industriei. Această căutare persistentă a calității a câștigat rulmenților cu bile adânci de la Ningbo Wanshun o bună reputație și o largă recunoaștere pe piață.
Privind spre viitor, Ningbo Wanshun Bearing Co., Ltd. va continua să susțină filozofia de afaceri de „a face prieteni înainte de a face afaceri, beneficii reciproce și dezvoltare comună” și va desfășura o cooperare extinsă și aprofundată cu prieteni din toate categoriile viața acasă și în străinătate cu o minte mai deschisă și acțiuni mai pragmatice. Compania crede cu fermitate că, prin eforturi și inovații continue, va contribui la dezvoltarea producției industriale în țara mea și chiar în lume. În același timp, compania așteaptă, de asemenea, cu nerăbdare să lucreze mână în mână cu mai mulți parteneri similari pentru a crea împreună un viitor mai bun.
